Micro-Fit 3.0 Connectors

What Is the Micro-Fit 3.0 Series?

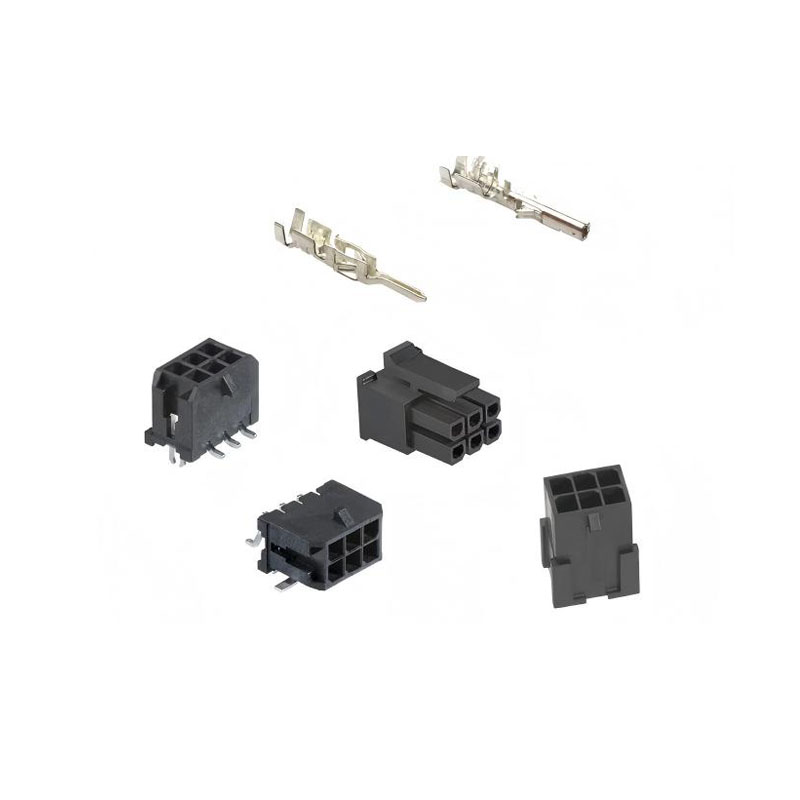

Micro-Fit 3.0 is a high-density power and signal connector series developed by Molex, featuring a 3.0 mm pitch that balances compact size and robust electrical performance.

It is widely used in industrial equipment, robotics, UAV systems, and internal wire harness assemblies, where designers need more power capacity than signal connectors, but smaller size than traditional power connectors.

Key Features & Benefits

High Power in a Compact Form

• Supports up to 8.5 A per circuit

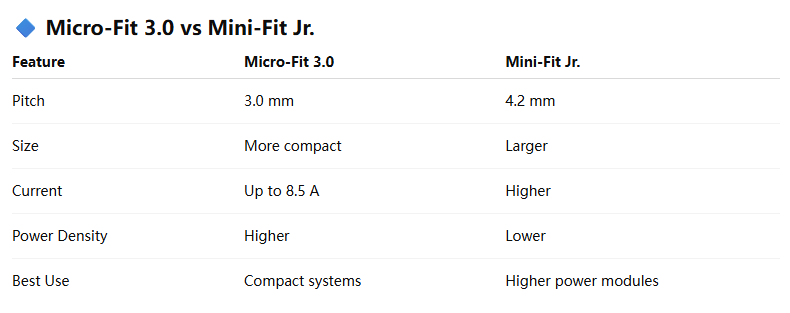

• Smaller footprint compared to Mini-Fit style connectors

Power & Signal Combination

• Multiple circuit options available

• Ideal for mixed power and signal transmission

Secure & Reliable Connection

• Positive locking design prevents accidental unmating

• Stable contact performance in vibration environments

Harness-Friendly Design

• Widely used in custom cable assemblies

• Easy integration into OEM wire harness designs

Typical Applications

Micro-Fit 3.0 connectors are commonly used in:

• Industrial Automation Equipment

• Industrial & Collaborative Robots

• UAV & eVTOL Subsystems

• Medical & Diagnostic Equipment

• Industrial Control Units

• Compact Power Modules
