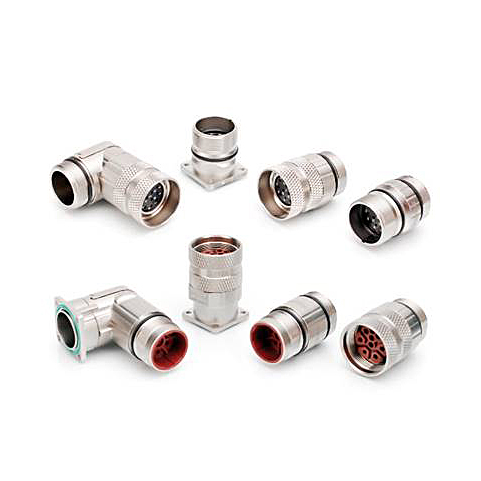

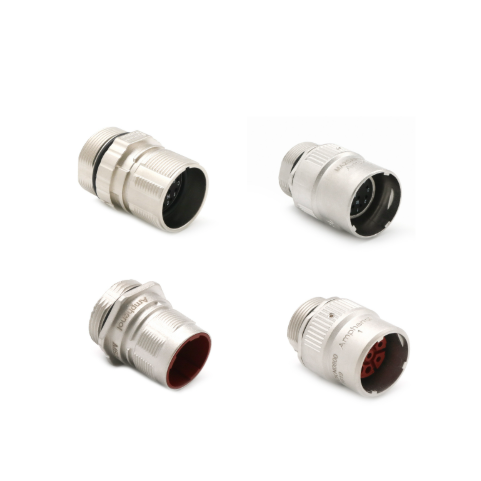

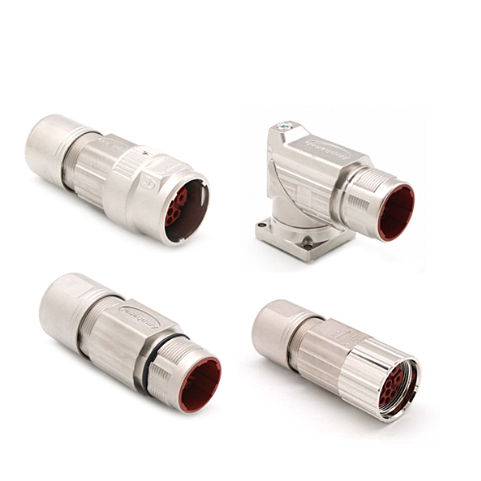

M23 Circular Connectors

Product description：

Reliable Power and Signal Solutions for Robotics, Servo Drives, and Industrial Equipment

M23 circular connectors are designed for applications requiring higher current capacity and mixed power-and-signal transmission. With a larger form factor and robust threaded locking, M23 connectors are widely used in robotics, servo motor systems, and industrial automation equipment.

Applications:
Indu

INQUIRY

What is an M23 Circular Connector?

The M23 connector is an industrial circular connector with a 23 mm threaded coupling, developed to support higher current and more complex pin layouts than M12. It is commonly used where power supply and signal feedback must be transmitted through a single connector interface.

Compared to smaller circular connectors, M23 provides enhanced electrical capacity, mechanical robustness, and long-term reliability in demanding industrial environments.

Key Features & Advantages

Larger connector size for higher current handling
Supports mixed power and signal configurations
Secure threaded locking for vibration resistance
Multiple pin layouts for motor power and feedback
Designed for continuous industrial operation
Compatible with harsh factory and automation environments

Typical Applications

M23 connectors are widely used in:

Industrial robots and robotic arms
Servo motors and drive systems
Motion control and automation equipment
Encoder and feedback connections
Industrial machinery and production lines

Best suited for:
Applications requiring power delivery combined with control or feedback signals in a single connector.

M23 vs M12 vs RTHP

M23 vs M12:
M23 supports higher current and more complex layouts, ideal for motors and drives, while M12 focuses on signal and data transmission.
M23 vs RTHP:
M23 is optimized for combined power and signal, whereas RTHP is designed for high-current power-only or power-dominant connections.

Choose M23 when you need a balanced solution for power and control in one interface.
