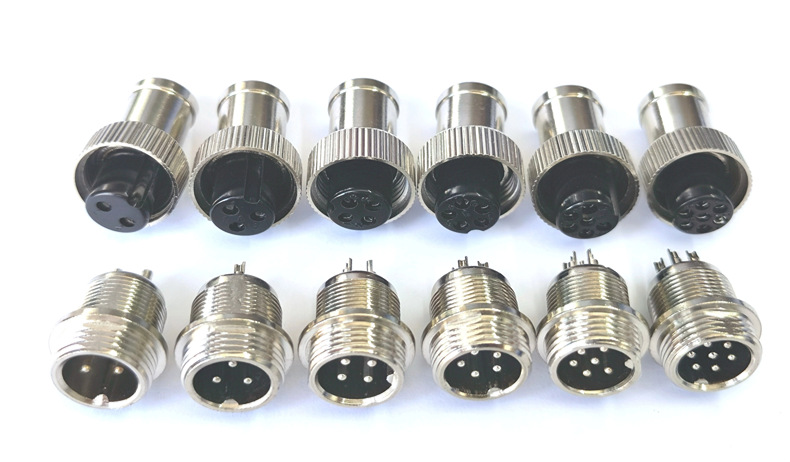

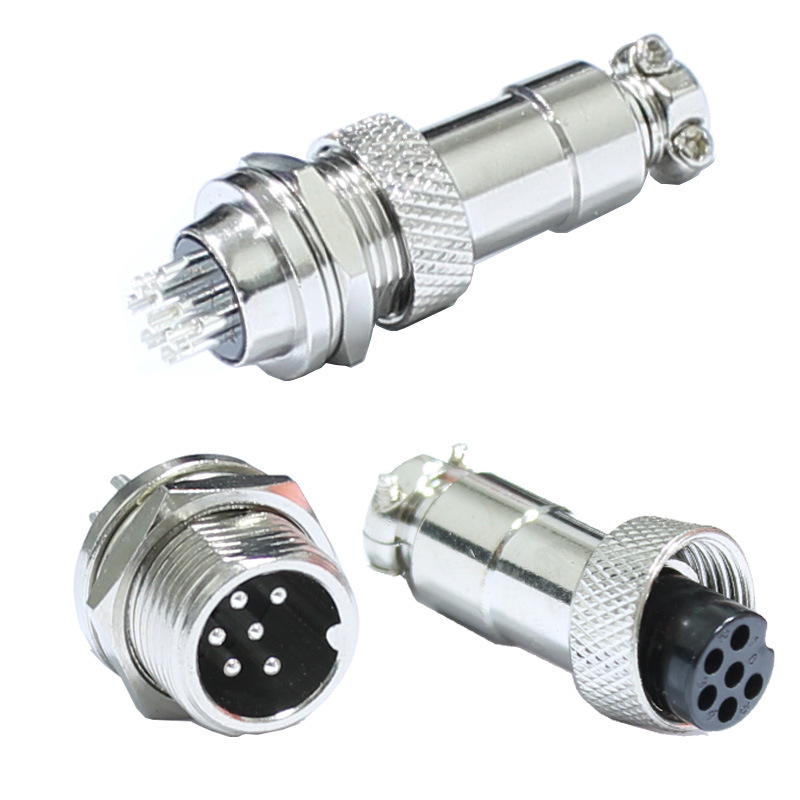

GX12 Aviation Connector

Product description：

Model NO.: GX12
Order(MOQ): 100
Payment: T/T,L/C,Western Union,Paypal
Product Origin: China
Shipping Port: Shenzhen
Lead Time: 7 Days

Model Specification	2 Core	3 Core	4 Core	5 Core	6 Core	7 Core
Rated Current/Voltage	5A/125V	5A/125V	5A/125V	5A/125V	5A/125V	5A/125V
Operating Voltage (AC, V) min	200	200	200	200	200	200
Withstand Voltage (AC, V) min	1500	1500	1500	1500	1500	1500
Insulation Resistance (MΩ) DV500V	1500	1500	1500	1500	1500	1500
Contact Resistance (MΩ) DC1A	10	10	10	10	10	10
Contact Hole Diameter φ (MM)	1.15	1.15	1.15	1.15	1.15	1.15
