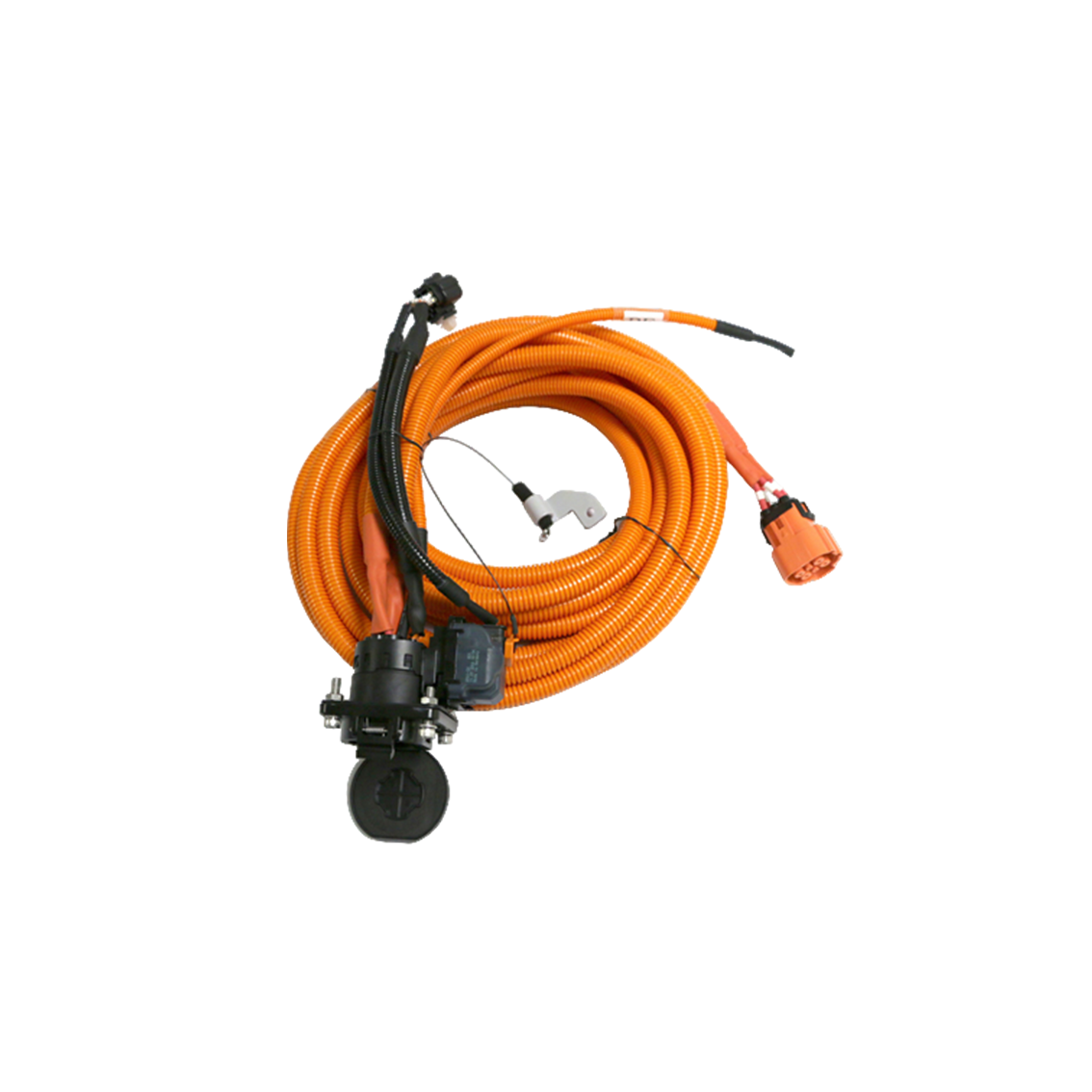

AC charging socket harness assembly

Product description：

Item NO.: LT-WH303
Order(MOQ): 100
Payment: T/T,L/C,Western Union,Paypal
Product Origin: China
Connector: Amphenol/TE/Jonhon/Recodeal/Molex/JST
Shipping Port: Shenzhen
Lead Time: 15 Days

INQUIRY

Product introduction

mechanical properties：
• Terminal: 6/8mm pin, silver plated surface
•Wire diameter range: 4mm², 6mm² and 16mm²
• Insertion life: > 10000 times
• Plugging force: F < 100N

Electrical characteristics：
• Rated voltage: 250V/440V
• Rated current: 16A/32A/63A
• Insulation resistance: ≥200M
• Insulation withstand voltage: 2000V AC

Environmental characteristics：
• Working temperature: -40 ℃~125℃.
• Protection Level: IP67
• Anti-shock Grade: IP2XB
• Corrosion resistance: 48H salt spray test
Characteristics and advantages：
• Straight 180 degrees, curved 90 degrees and various outgoing schemes are optional.
• Application of Cable Diameters of 4mm², 6mm² and 16mm²
• Touch-proof, IP2XB
• Waterproof Seal, IP67

Application area
• charger
