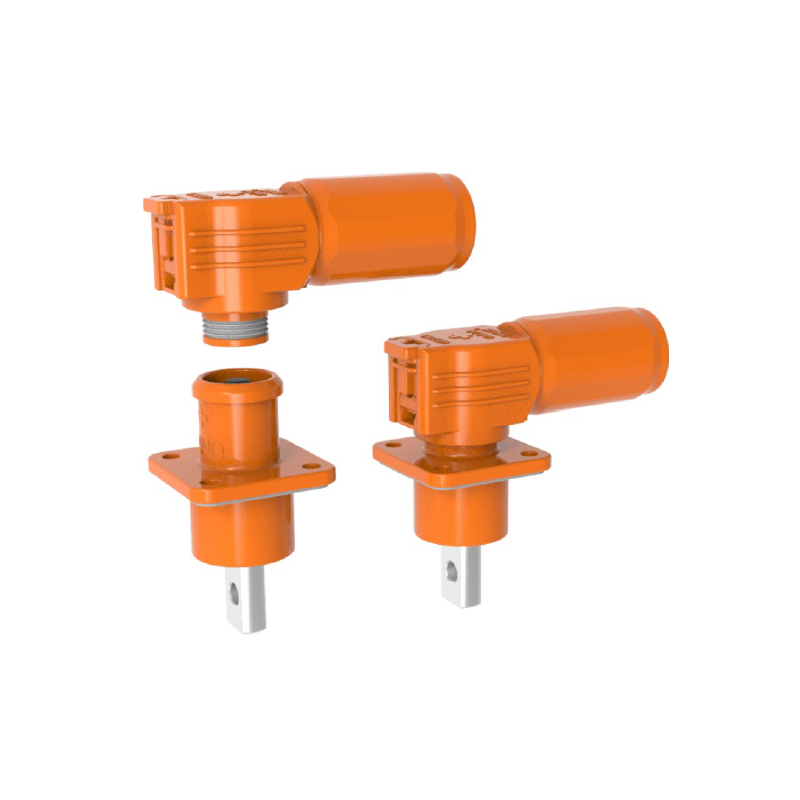

200A 1500V Single core waterproof elbow connector

Product description：

Item NO.: LT-CC302
Order(MOQ): 100
Payment: T/T,L/C,Western Union,Paypal
Product Origin: China
Shipping Port: Shenzhen
Lead Time: 7 Days

INQUIRY

Specification:

Rated current: 200A (MAX);

Rated Voltage: 1000V AC/1500V DC (MAX);
Contact impedance Resistance: 0.5 milliohm (MAX);
Insulation Resistance: 2000 Megohm (MIN);
● Separating Force after locking: 110N (MIN);
Operating Temperature: -40 ° C to+125 ° C;
Cable Range: 35mm ² to 50mm ²;
Fire Rating: UL94V-0;
Waterproof level IP Class: IP67 (Mated);
● High voltage safety interlock;
